1

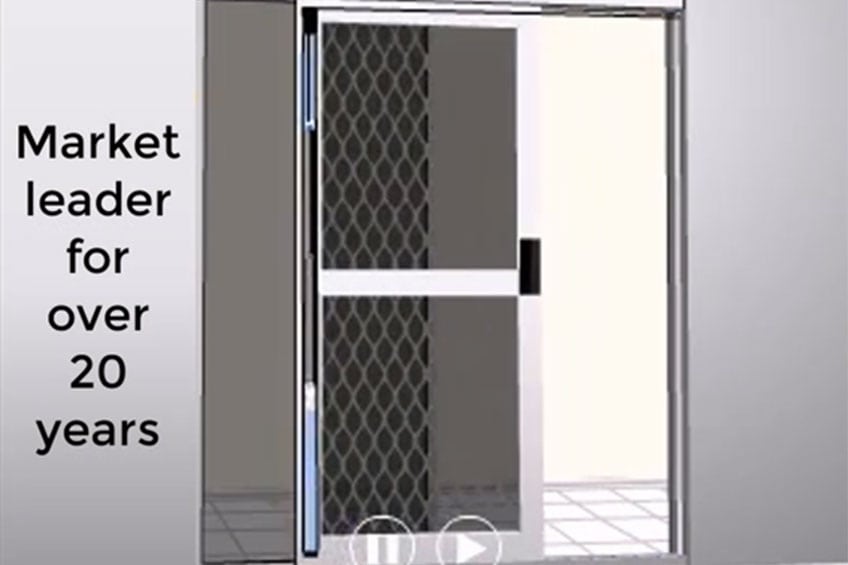

The door closer with its internal speed controlled weight assembly is mounted vertically onto the trailing door stile. https://m3world.com.au
2
The pulley box at the top of the closer must be a few millimetres below the upper door track.
3
A nylon line that extends through the pulley box and across the door to an appropriately located anchor screw suspends the weight assembly.
4
Trailing door stile.
5
Upper door track.
6
Leading door stile.
7
An anchor lug is attached to the nylon line and then hooked over the anchor screw.
8
A dress cap covers the anchor lug
LEFT SLIDING DOOR
1
The door closer with its internal speed controlled weight assembly is mounted vertically onto the trailing door stile. https://m3world.com.au
2
The pulley box at the top of the closer must be a few millimetres below the upper door track.
3
A nylon line that extends through the pulley box and across the door to an appropriately located anchor screw suspends the weight assembly.
4
Trailing door stile.
5
Upper door track.
6
Leading door stile.
7
An anchor lug is attached to the nylon line and then hooked over the anchor screw.
8
A dress cap covers the anchor lug
CENTRE-MEETING SLIDING DOOR
1
The door closer with its internal speed controlled weight assembly is mounted vertically onto the trailing door stile.
2
The pulley box at the top of the closer must be a few millimetres below the upper door track.
3
A nylon line that extends through the pulley box and across the door to an appropriately located anchor screw suspends the weight assembly.
4
Trailing door stile.
5
Upper door track.
6
Leading door stile.
7
An anchor lug is attached to the nylon line and then hooked over the anchor screw.
8
A dress cap covers the anchor lug
STACKING DOOR
1
The door closer with its internal speed controlled weight assembly is mounted vertically onto the trailing door stile.
2
The pulley box at the top of the closer must be a few millimetres below the upper door track.
3
A nylon line that extends through the pulley box and across the door to an appropriately located anchor screw suspends the weight assembly.
4
Trailing door stile.
5
Upper door track.
6
Leading door stile.
7
An anchor lug is attached to the nylon line and then hooked over the anchor screw.
8
A dress cap covers the anchor lug

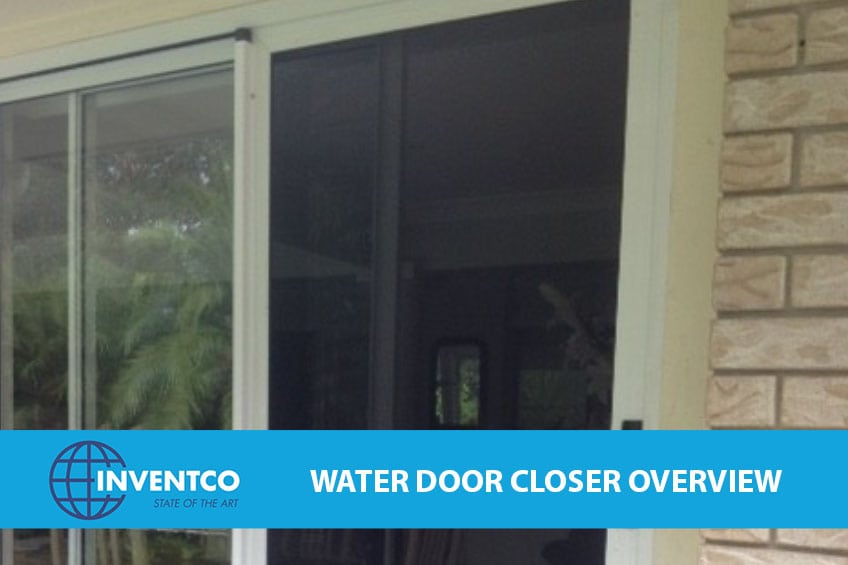

The AquaClose Sliding Door Closer is commonly known as the ‘Water’ Door Closer due to the fact that it uses a unique patented speed limiting valve.
The AquaClose Sliding Door Closer is commonly known as the ‘Water’ Door Closer due to the fact that it uses a unique patented speed limiting valve that operates within the door mounted closer tube, which is water filled.
The closing speed of the door is suppressed, resulting in a gently latching action. The AquaClose Water Door Closer is easily fitted to sliding security screen doors which conform to Australian Standards. It quietly and consistently closes your sliding doors for you, year in and year out.
In addition to its use as an automatic screen door closer, it has been extensively used Australia wide to satisfy swimming pool safety laws, which exist in all Australian states and are being adopted throughout the world. An automatic closing security screen door is an effective way of keeping young children from straying into the pool area where accidental drowning is a far too frequent cause of death.
It is available in all popular anodised and powder coated colours and is available through our Australia wide network of resellers/installers.
The AquaClose Sliding Door Closer is simply a great investment for any home and will improve your family’s lifestyle by increasing hygiene and health levels through keeping insects, flies, mosquitos and other vermin out of the home.
DISCLAIMER: State laws vary widely throughout Australia. Check with your local council to ensure your planned pool security solution complies with state laws.
The AquaClose Water Door Closer
has only one wearing part and will give years of maintenance free service.
Click on image above to Download warranty PDF
Find supplier-installers of the Sliding Screen Door Closer here Supplier-Installers
